This snippet demonstrates how to implement telemetry logging in Power Apps using User Defined Functions (UDFs) and Azure Application Insights. It addresses common issues that arise when Trace() is used inconsistently - such as mismatched parameters, varying message formats, and unstandardized severity levels. The sample also highlights the importance of preparing data properly before logging to avoid redundant nesting, which can make logs more difficult to parse and interpret.

Prerequisites

1. Existing Azure Application Insights resource. Add Azure Application Insights Connection String into the Power Apps Canvas app.
2. Make sure that experimental features are enabled:
   • User-defined functions
   • User-defined types
3. Power Apps Canvas app with the following controls (name the controls the same as in the list below):
   • DatePicker
   • Slider
   • Gallery
   • Radio
   • Dropdown
   • Toggle
   • Rating
   • Combobox
   • Checkbox
   • Button

Minimal path to awesome

1. Add the following code into Formula property on the App level:

nfToggleOn = "Reserve a parking space along with the workspace";
nfToggleOff = "Parking space not required";

tpGalleryInputTable := Type([{title: Text}]); // Replace title with your gallery property name

tpGeneralInputTable := Type([{Value: Text}]);

udfTrace(
    datePicker: Date,
    slider: Number,
    galleryItems: tpGalleryInputTable,
    radio: tpGeneralInputTable,
    dropdown: tpGeneralInputTable,
    toggle: Boolean,
    rating: Number,
    combobox: tpGeneralInputTable,
    checkbox: Text
):Boolean =
{
    With(
        {
            // Transform Gallery Items into JSON
            wthGalleryItemsJsonOutput:
            Concat(
                ForAll(
                    Sequence(CountRows(galleryItems)),
                    {
                        tempRowIndex: Value - 1,
                        tempTitle: Last(FirstN(galleryItems, Value)).title // Replace title with your gallery property name
                    }
                ),
                """" & Text(tempRowIndex) & """:""" & Substitute(tempTitle, """", "\""") & """",
                ","
            ),

            // Transform Gallery Items into String
            wthGalleryItemsString:
            Concat(galleryItems,title,", "), // Replace title with your gallery property name

            // Transform Combobox Items into JSON
            wthComboboxItemsJsonOutput:
            Concat(
                ForAll(
                    Sequence(CountRows(combobox)),
                    {
                        tempRowIndex: Value - 1,
                        tempTitle: Last(FirstN(combobox, Value)).Value
                    }
                ),
                """" & Text(tempRowIndex) & """:""" & Substitute(tempTitle, """", "\""") & """",
                ","
            ),

            // Transform Combobox Items into String
            wthComboboxItemsString:
            Concat(combobox,Value,", ")
        },
        Trace(
            "udf_trace_demo",
            TraceSeverity.Information,
            {
                datePicker: Text(DateValue(datePicker), DateTimeFormat.ShortDate),
                slider: slider,
                gallery_items_record: "{" & wthGalleryItemsJsonOutput & "}",
                gallery_items_string: wthGalleryItemsString,
                radio: Text(First(radio).Value),
                dropdown: Text(First(dropdown).Value),
                toggle: If(
                    toggle,
                    nfToggleOn,
                    nfToggleOff
                ),
                rating: rating,
                combobox_record: "{" & wthComboboxItemsJsonOutput & "}",
                combobox_string: wthComboboxItemsString,
                checkbox: checkbox
            }
        )
    )
};

udfTraceError(
    screen: Text,
    button: Text
):Void =
{
    Trace(
        "udf_trace_onError",
        TraceSeverity.Error,
        {
            screen: screen,
            button: button
        }
    )
};

2. Insert the following code into the OnSelect property of the Button:

udfTrace(
    DatePicker.SelectedDate,
    Slider.Value,
    ShowColumns(
        Filter(
            Gallery.AllItems,
            status = "Yes" // Replace status with your gallery property name
        ),
        title // Replace title with your gallery property name
    ),
    RadioGroup.SelectedItems,
    Dropdown.SelectedItems,
    Toggle.Checked,
    Rating.Value,
    Combobox.SelectedItems,
    Checkbox.Checked
)

3. Save the app and publish it.

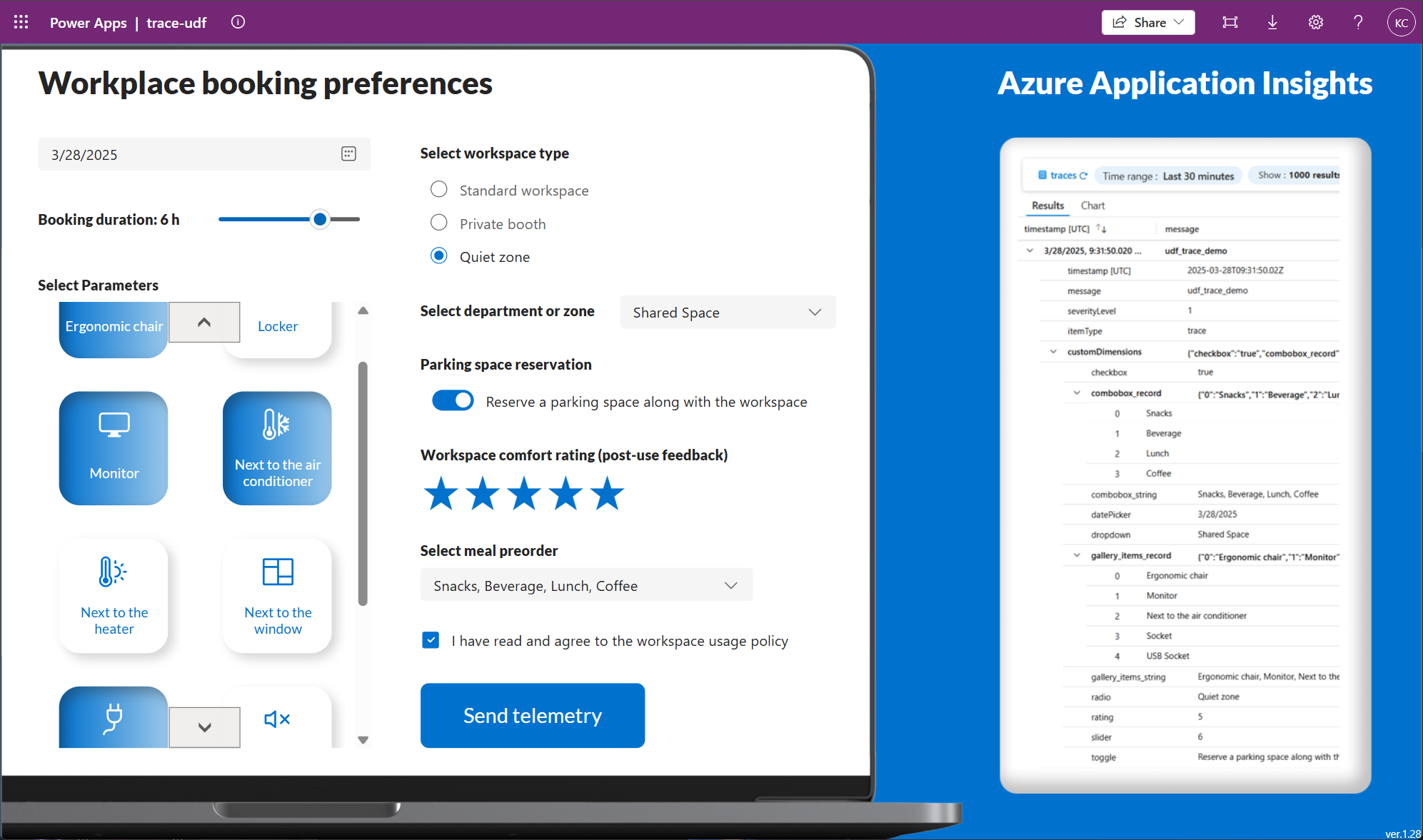

4. Play the app, test the button to send telemetry to Azure Application Insights.
5. Navigate to the Azure Application Insights resource. Open the Logs under Monitoring. Select trace table. You will see the collected telemetry under the customDimensions.
